If you use the alpha II trans, most everything will bolt right up minus the exception of needing a XD elantra bracket on the passenger side..



Wiring is a whole other story..



As for the brakes, I did the xg350 setup on the front with Kia Spectra5 rotors redrilled to 4x100. Ended up having a friend of mine make custom hub rings so that the rotors would fit.
SpoolinShark is offline
Old 11-09-2017, 12:35 PM
  #12
Member

superwoo's Avatar

Join Date: Nov 2002
Location: Kentucky
Posts: 51
Thanks: 0
Thanked 0 Times in 0 Posts
Vehicle: 00 Elantra
Default

I'm subscribing to this thread so I can keep up on this build.
superwoo is offline
Old 11-09-2017, 07:54 PM
  #13
Super Moderator

Stocker's Avatar

Join Date: Sep 2001
Location: Pflugerville, TX
Posts: 10,795
Thanked 2 Times in 2 Posts
Vehicle: 2000 Elantra
Default

That bedliner looks amazing, and is a great idea.
Stocker is offline
Old 11-10-2017, 06:30 AM
  #14
Senior Member

rob40's Avatar

Join Date: Feb 2014
Location: UK
Posts: 127
Thanks: 0
Thanked 1 Time in 1 Post
Vehicle: 2000/Hyundai/Coupe F2 Evo
Default

loving your work my friend, that's one heck of a project.



In the UK we're not allowed to paint over the brake lines as they would suspect you have painted over to hide the rust, it'd fail the MOT (i think).
rob40 is offline
Old 11-10-2017, 06:38 AM
  #15
Moderator

JonGTR's Avatar

Join Date: May 2001
Location: San Antonio, TEXAS!!!
Posts: 7,151
Thanked 6 Times in 5 Posts
Vehicle: 01 Tiburon Turbo, 99 Tiburon F2E, 2013 Avalon XLE Touring
Default

Can't wait to see it running down a track.
JonGTR is offline
Old 11-10-2017, 12:33 PM
  #16
Senior Member
Thread Starter

SpoolinShark's Avatar

Join Date: Oct 2008
Location: Columbus, Ohio
Posts: 658
Thanks: 0
Thanked 0 Times in 0 Posts
Vehicle: 1997 Hyundai Tiburon
Default

Pulled all of the power steering components out of the car.. Because race car





16x1.5mm to 6an fitting and 14x1.5mm to 6an fitting











Fittings installed into the steering rack

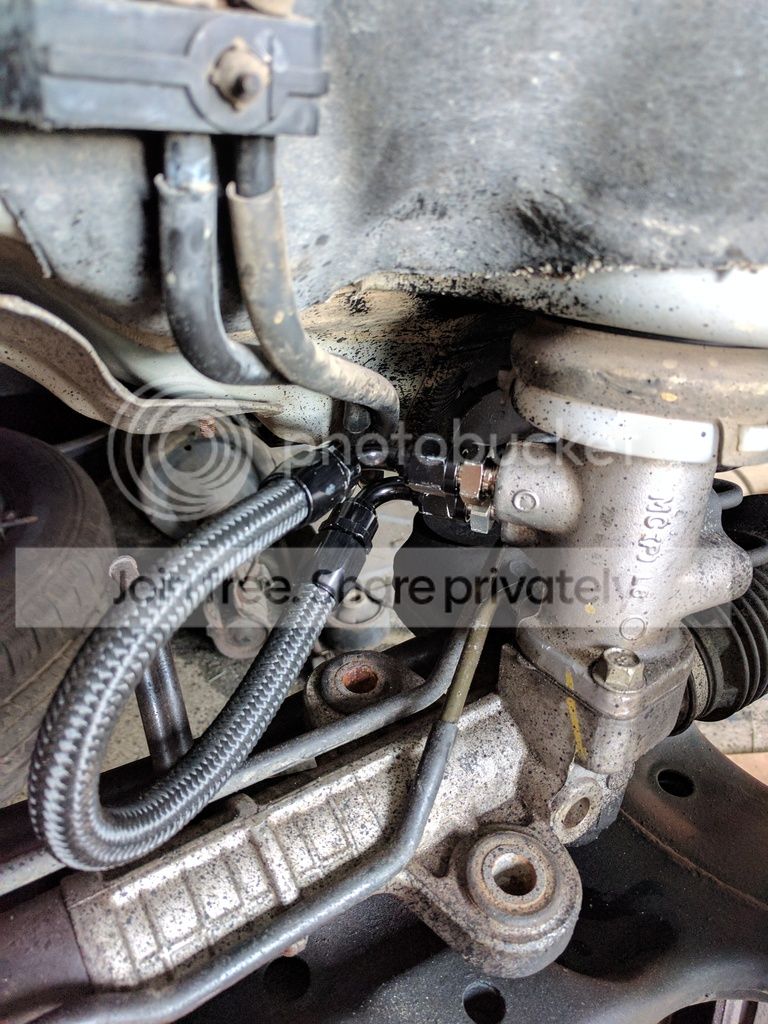

6an braided hose and hose ends to loop everything






SpoolinShark is offline
Old 11-11-2017, 10:32 PM
  #17
Senior Member
Thread Starter

SpoolinShark's Avatar

Join Date: Oct 2008
Location: Columbus, Ohio
Posts: 658
Thanks: 0
Thanked 0 Times in 0 Posts
Vehicle: 1997 Hyundai Tiburon
Default

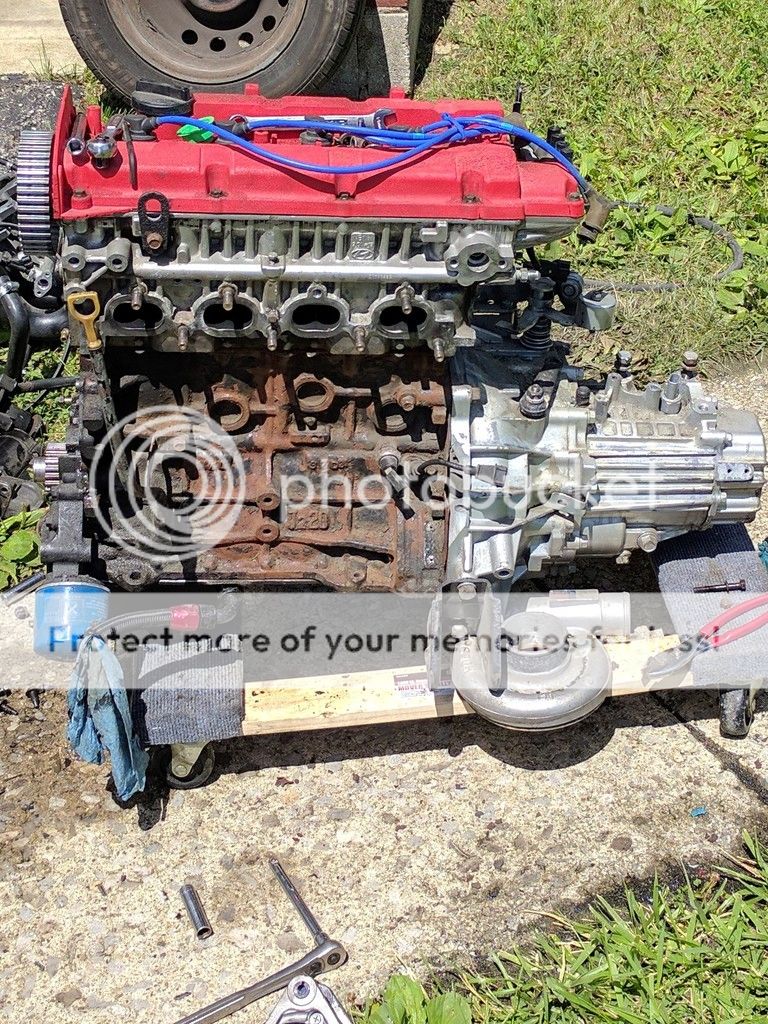

Decided that the engine and trans needed cleaned up so I stripped everything down and sand blasted it all. That of course was followed by paint.







Before

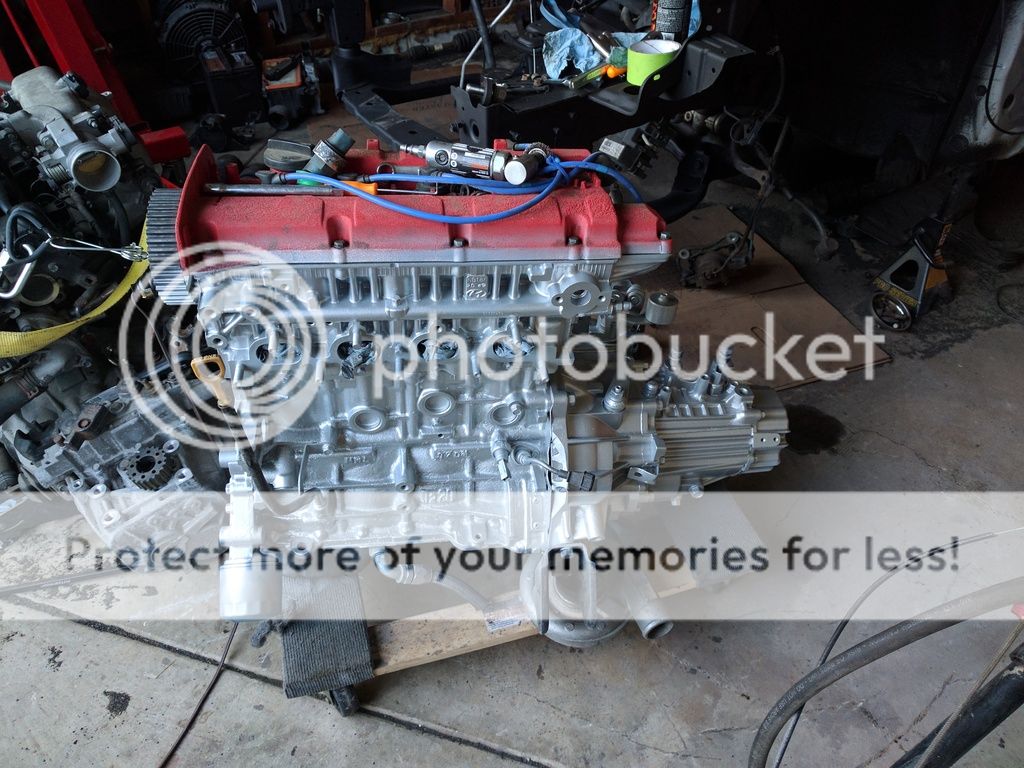

After - Yes, I'm changing the oil filter and I cleaned up the overspray already











Started to mock up the MC a/c compressor to the Beta block. The Beta block only has 3 bolt holes to be used whereas the Alpha II block has 4.. So naturally the top left bolt wasn't used.

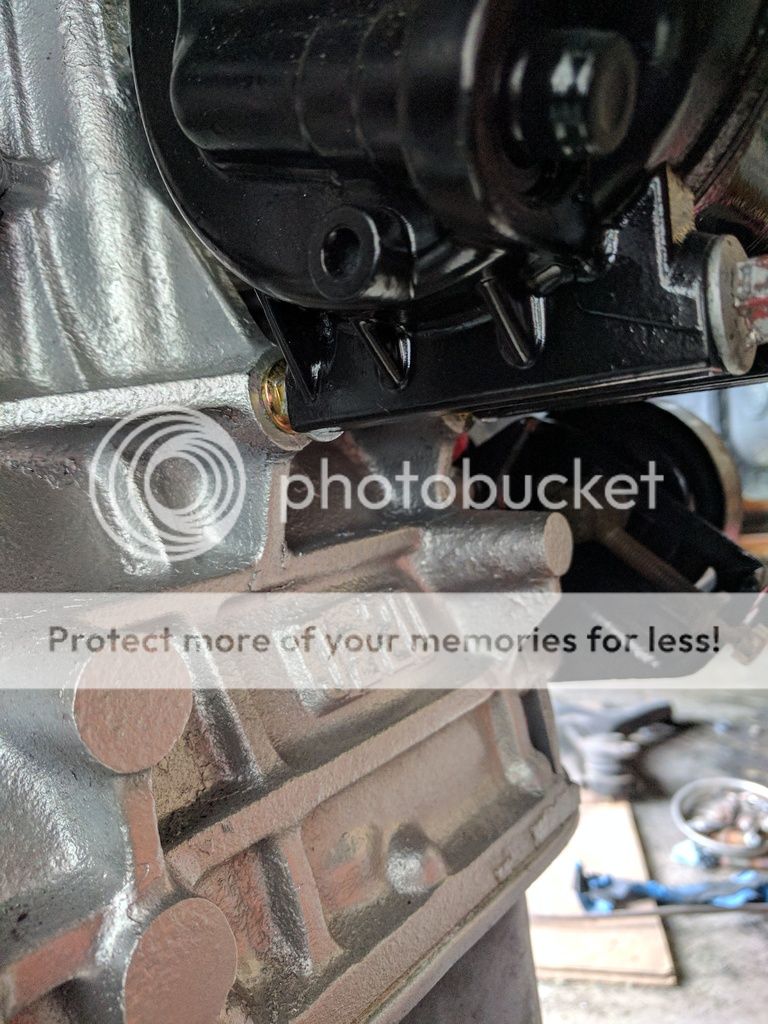

The MC compressor finally bolted to the Beta block. I had to use nuts between the block and compressor on the bottom bolts as there was a gap when tightening everything down.





SpoolinShark is offline
Old 11-12-2017, 07:53 PM
  #18
Senior Member
Thread Starter

SpoolinShark's Avatar

Join Date: Oct 2008
Location: Columbus, Ohio
Posts: 658
Thanks: 0
Thanked 0 Times in 0 Posts
Vehicle: 1997 Hyundai Tiburon
Default

Push clutch conversion with ACT 6 puck sprung disk and custom ACT Maxx pressure plate. This setup should hold close to 500hp.





These pictures are technically from my tib build, but they are still in the trans which is now in the Accent.

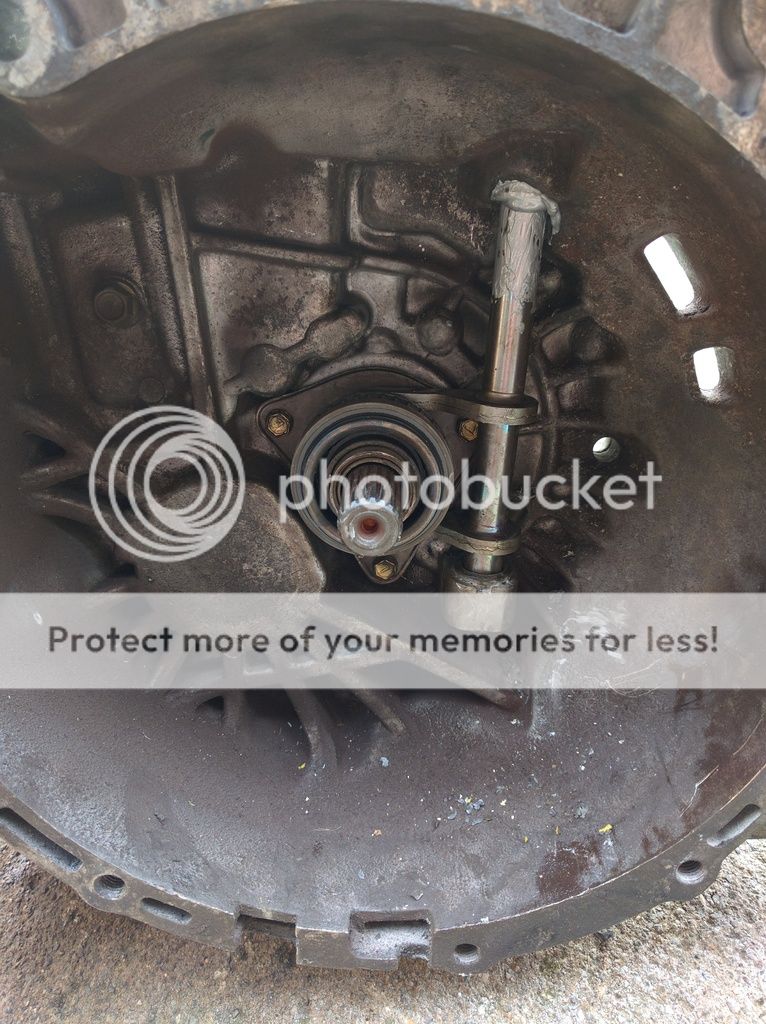

Collar from AtelierHP pressed onto the Beta II input shaft cover























[
SpoolinShark is offline
Old 11-13-2017, 08:05 PM
  #19
Senior Member
Thread Starter

SpoolinShark's Avatar

Join Date: Oct 2008
Location: Columbus, Ohio
Posts: 658
Thanks: 0
Thanked 0 Times in 0 Posts
Vehicle: 1997 Hyundai Tiburon
Default

Had Colt Cams do a tri-flow regrind on my Beta II cams. Went with Crower .035" lash caps to make up for the reduction on the base circle of the cams.

















SpoolinShark is offline
Old 11-15-2017, 08:22 PM
  #20
Senior Member
Thread Starter

SpoolinShark's Avatar

Join Date: Oct 2008
Location: Columbus, Ohio
Posts: 658
Thanks: 0
Thanked 0 Times in 0 Posts
Vehicle: 1997 Hyundai Tiburon
Default

Modified the stock Accent fuel canister to accept an on3 320lph e85 compatible fuel pump. I converted the stock feed line into a return line, roughly 5an, and ran a new 6an feed line to the bay.



By the way, the Race Egg will be ran on corn power.





Drilled a hole in the top of the canister and added a 90 bulkhead 6an fitting.















Ended up having to remove some material on the inside of the canister as the pump was too large to fit











The new pump with with a 6an push-lok fitting and hose. Wired in the stock fuel pump harness connector too

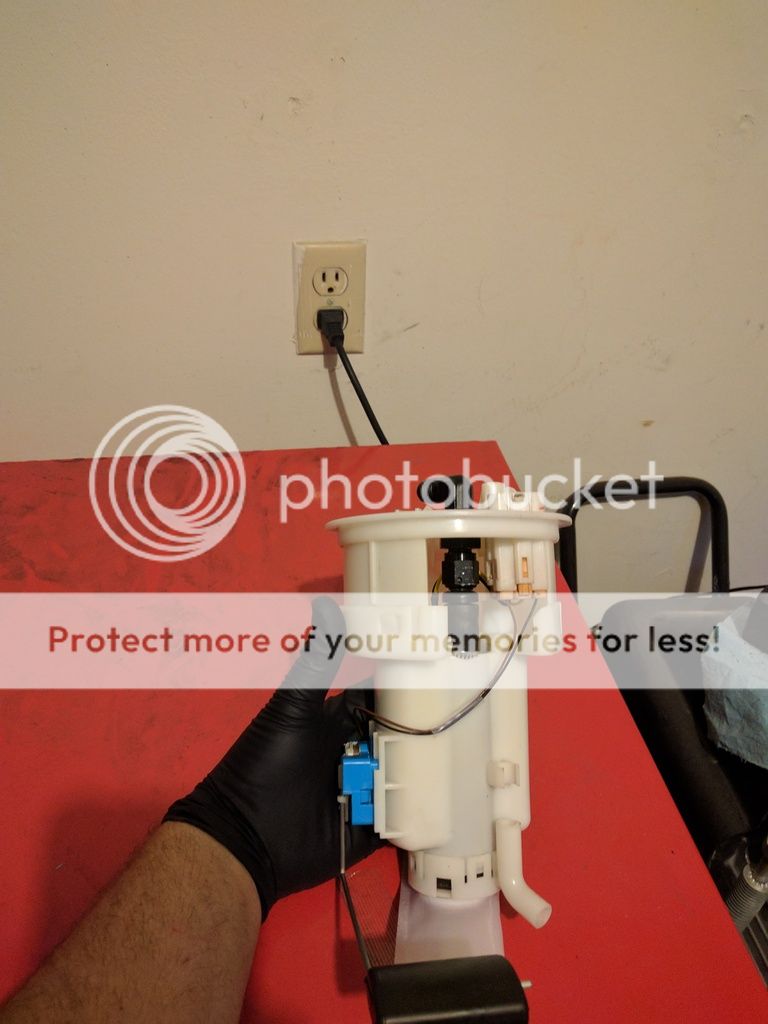

Pump and canister fully assembled and ready to drop in











The pump and canister back in the tank with all of the hoses/lines hooked up





SpoolinShark is offline
