elantra rear brakes 1996-2000
03-03-2012, 01:22 AM
#1
Senior Member
Thread Starter
Join Date: Mar 2010
Location: Perth, Western Australia
Posts: 358
Likes: 0
Received 0 Likes
on
0 Posts
Vehicle: 1999 Elantra GLS Sportswagon
elantra rear brakes 1996-2000
For all those who want to do a rear disc conversion i thought i'll post some information and photo's to confuse you as much it has me.
My planned rear brake conversion didn't go ahead as planned due to the brake fabricators who were doing the job said there were too many irregularities with the parts i had supplied so i had no other choice to get the drums re-done which doesn't make it viable to continuing the conversion as the drums will properly out last the car.
I met this guy selling parts for J2 lantra as i was interested in his dash and also having a look at his rear brakes as they are disassembled it gave me the opportunity to see what or if any differences are between sedans and wagons pre 1999 and there isn't so that confused me as the information on hmaservice.com doesn't match the axle holders that i have now seen as their diagrams basically show you can swap drums to disc's ? To confuse matters more i had the opportunity to take some snaps of Tims 96 J2 rally car that has disc's that did'nt match any pictures I've seen but he said the rally car did have a rear disc conversion on it which was done when it was originally built up around 1996 (from new). The only thing he had done with the rear brakes was have them rebuilt and reconditioned with new seals and some racing brake pads, so unfortunately do not know much about the actual conversion
Some photo's http://s1084.photobucket.com/albums/...rear%20brakes/
My planned rear brake conversion didn't go ahead as planned due to the brake fabricators who were doing the job said there were too many irregularities with the parts i had supplied so i had no other choice to get the drums re-done which doesn't make it viable to continuing the conversion as the drums will properly out last the car.
I met this guy selling parts for J2 lantra as i was interested in his dash and also having a look at his rear brakes as they are disassembled it gave me the opportunity to see what or if any differences are between sedans and wagons pre 1999 and there isn't so that confused me as the information on hmaservice.com doesn't match the axle holders that i have now seen as their diagrams basically show you can swap drums to disc's ? To confuse matters more i had the opportunity to take some snaps of Tims 96 J2 rally car that has disc's that did'nt match any pictures I've seen but he said the rally car did have a rear disc conversion on it which was done when it was originally built up around 1996 (from new). The only thing he had done with the rear brakes was have them rebuilt and reconditioned with new seals and some racing brake pads, so unfortunately do not know much about the actual conversion
Some photo's http://s1084.photobucket.com/albums/...rear%20brakes/
06-09-2012, 11:57 PM
#3
Member
Join Date: Jul 2010
Location: NZ
Posts: 35
Likes: 0
Received 1 Like
on
1 Post
Vehicle: 1999 hyundai lantra
I did a rear disc conversion on my wagon. All I needed was the complete hub assemblies off a coupe with handbrake cables and brake hoses. All bolted up fine bled brakes and was away racing.
06-10-2012, 01:14 AM
#5
Senior Member
Thread Starter
Join Date: Mar 2010
Location: Perth, Western Australia
Posts: 358
Likes: 0
Received 0 Likes
on
0 Posts
Vehicle: 1999 Elantra GLS Sportswagon
Looks like i was feed a lot of bull$hit, maybe you guys should do a diy and post some pics for future reference
06-10-2012, 01:29 AM
#6
Senior Member
Join Date: Mar 2006
Location: tacos
Posts: 9,533
Likes: 0
Received 0 Likes
on
0 Posts
Vehicle: 2000 Elantra
whats to DIY?
remove rear hubs from a rear disk brake having tiburon
removed rear hubs from a rear drum brake having elantra
install rear disk brake hubs onto elantra
connect brake line
connect e brake cable (may or may not need to order different ones...youll know right away if you do)
bleed brakes
profit
remove rear hubs from a rear disk brake having tiburon
removed rear hubs from a rear drum brake having elantra
install rear disk brake hubs onto elantra
connect brake line
connect e brake cable (may or may not need to order different ones...youll know right away if you do)
bleed brakes
profit
06-10-2012, 02:00 AM
#10
Senior Member
Join Date: Mar 2006
Location: tacos
Posts: 9,533
Likes: 0
Received 0 Likes
on
0 Posts
Vehicle: 2000 Elantra
yup many model names for the same vehicle
coupe
fx coupe
tiburon
turbulence
f2 evolution
f2
lemme know if you need a hand with anything mang its a pretty simple direct swap for the most part

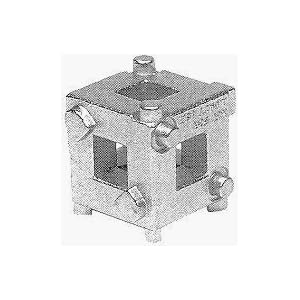

youll need one of these though
coupe
fx coupe
tiburon
turbulence
f2 evolution
f2
lemme know if you need a hand with anything mang its a pretty simple direct swap for the most part
youll need one of these though
