Can anyone help me figure out some wiring? ...Tibbymat, I know you should be able to help me.

I bought/traded a ScyTek Galaxy 2000RS remote starter from Ericy123 on here about a year ago maybe. I have been letting this thing sit because I was worried it might take some time and I may not be able to use my car for several days. I have my jeep just about back on the road again, been modding it lately with headers, hi-flow cat, dynomax turbo muffler, stage II jet chip, BBTB, and CAI. This will allow me to take my time installing this system and making sure it's done correctly.

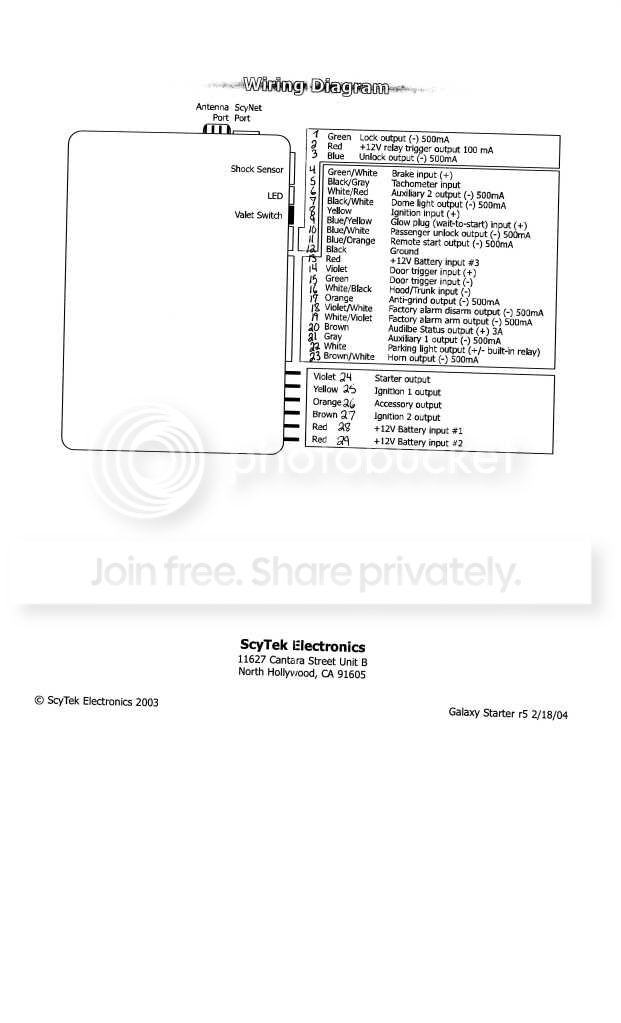

The help I need is knowing what wire goes where. I plan on using wire connectors so there will be no cutting or soldering. I think the best location to install the kit is under the dash next to the ECU. I plan on making all connections right at the ecu since everything I need should be right there. I am not 100% sure on each wire to wire connection so I have numbered the wiring diagram for the remote starter.

Look below and if you understand any of the two diagrams please tell me number to number which wires to connect:





And here is a link to the g2000RS manual- http://scytek.net/manuals/galaxy/g2000RS.pdf



hey man... just lettin you know i didnt ignore or forget about your pm. i just got back from cancun and i will have a look at this again tomorrow to tell you what you need to do. i just got in and i am checkin my msgs and then goin to bed. so i will let ya know soon! fing02.gif



i only hook up a remote starter on nissans at the ECU simply because it is so easy. most other cars i just go in the kick pannel and ignition and then tach under hood.

if you are going to the ecu then the wire colors i am giving you may be the same wire colors at the ecu. Just PLEASE TEST BEFORE YOU HOOK ANYTHING UP.



12 VOLTS yel/blk to blue + ignition harness Notes: The plug is below the cross member beam under the driver side dash.

STARTER 1 yel/red to gray + ignition harness

IGNITION 1 blk/wht to brown + ignition harness

ACCESSORY 1 red/wht to grn/wht + ignition harness

ACCESSORY 2 wht/blu to pink + ignition harness



PARKLIGHTS POSITIVE green/white gray 20 pin plug, pin 11 Notes: The plug is below the cross member beam under the driver side dash.

PARKLIGHTS NEGATIVE red/black headlight switch

HEADLIGHT blue/black - headlight switch

BRAKE green + brake pedal switch

DOOR PIN green/white - white 20 pin plug, pin 12 Notes: The plug is high in the drivers kick panel.

TRUNK PIN blue/white - white 20 pin plug, pin 16 Notes: The plug is high in the drivers kick panel.



TACH white blue 20 pin plug, pin 1 Notes: The plug is just below the cross member beam under the driver side dash. Can also find tach at the ignition coil on the driver side of the engine, use either the green or white wire.

VSS yellow/black data link connector Notes: The data link connector is under the driver side dash below the steering column.





any questions you can pm me



hope this helps
