Okay folks, use it to your hearts content. I didn't scan the RD1's, they were from another member here on the site. Sorry for the lower quality of the RD1's pics.

CLICK ON THE PICS TO MAKE THEM BIGGER.

<span style="color:#FFCCCC"><span style="font-size:18pt;line-height:100%">RD1 1997-1999</span></span>

1 2 3 4 5 6

7 8 9 10 11

12 13 14 15


<span style="color:#990000"><span style="font-size:18pt;line-height:100%">RD2 2000-2001</span></span>

1 2 3 4 5 6


7 8 9 10 11 12


13

BUMP.



wow thats awesome. thanks so much



Thanks Redz that will really help a bunch!! fing02.gif



#13 in the rd2 section is for 97-99 tibs. fyi and can you rescan 5? some of the text is barely readable thx



Premier Members provided that for you guys, their money went directly to buying these for you.

<div class='quotetop'>QUOTE (Ssysak @ Dec 22 2005, 07:38 AM) <{POST_SNAPBACK}></div><div class='quotemain'>#13 in the rd2 section is for 97-99 tibs. fyi and can you rescan 5? some of the text is barely readable thx</div>

#13 is for RD2's. Look at the rear bumper. The title says RD1, but that's because the RD1 sheet starts on the RIGHT side of that page.

I'll rescan 5.

Rescanned, and reuploaded. Looks a LOT better.



thanks man. does look better, thanks for clearing that up about 13. i get it now .lol my bad.



i am geting tired of going through each page lookin for what i want so i typed up a list of contents. add it to the first page if you want but i atleast want it on here for myself. i just did it for rd1's cuz thats all i care about lmao.gif

just for rd1's

1.
section index
special cautions
paint code location
clear coat identification
information labels
front bumper
front lamps
hood

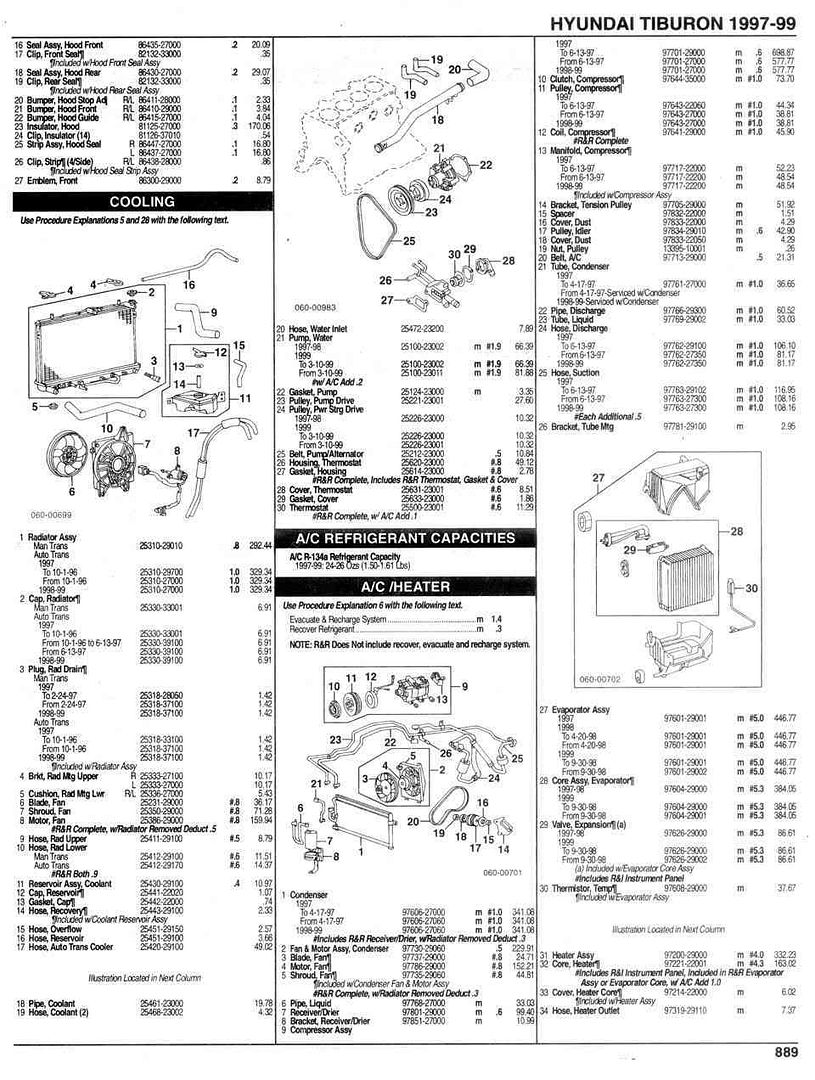

2.
cooling
a/c refrigeration
a/c / heater

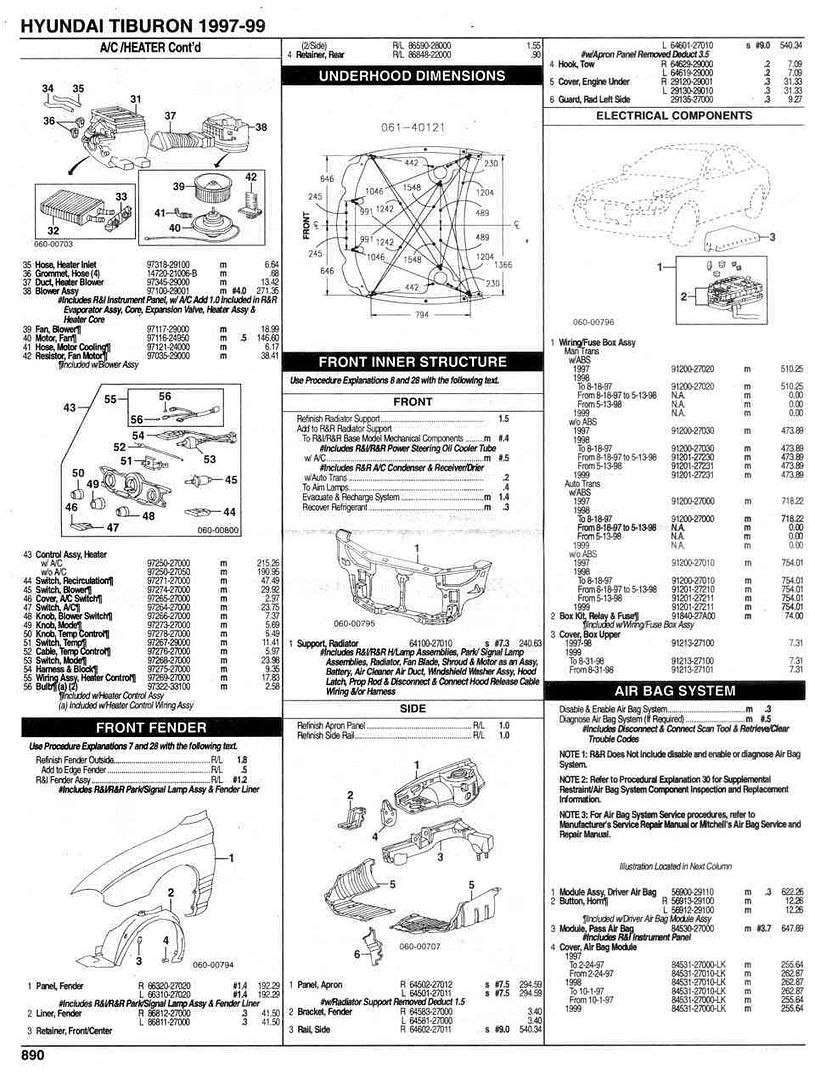

3.
front fender
underhood deminsions
front inner structure
airbag system

4.
abs brakes
cruise control system
wheel
front suspension

5.
front drive axle
front steering linkage/gear
steering pump

6.
steering wheel / column
engine / transmission
engine / transmision mounts

7.
air cleaner
exhaust
emmision system
electrical
windshield

8.
wiper system
cowl and dash
instrument panel

9.
center console
rocker / pillar / floor
front seat

10.
rear seat
seat belts
front door

11.
glass and parts
roof


12.
sunroof
quarter panel

13.
quarter glass
liftgate
rear suspension

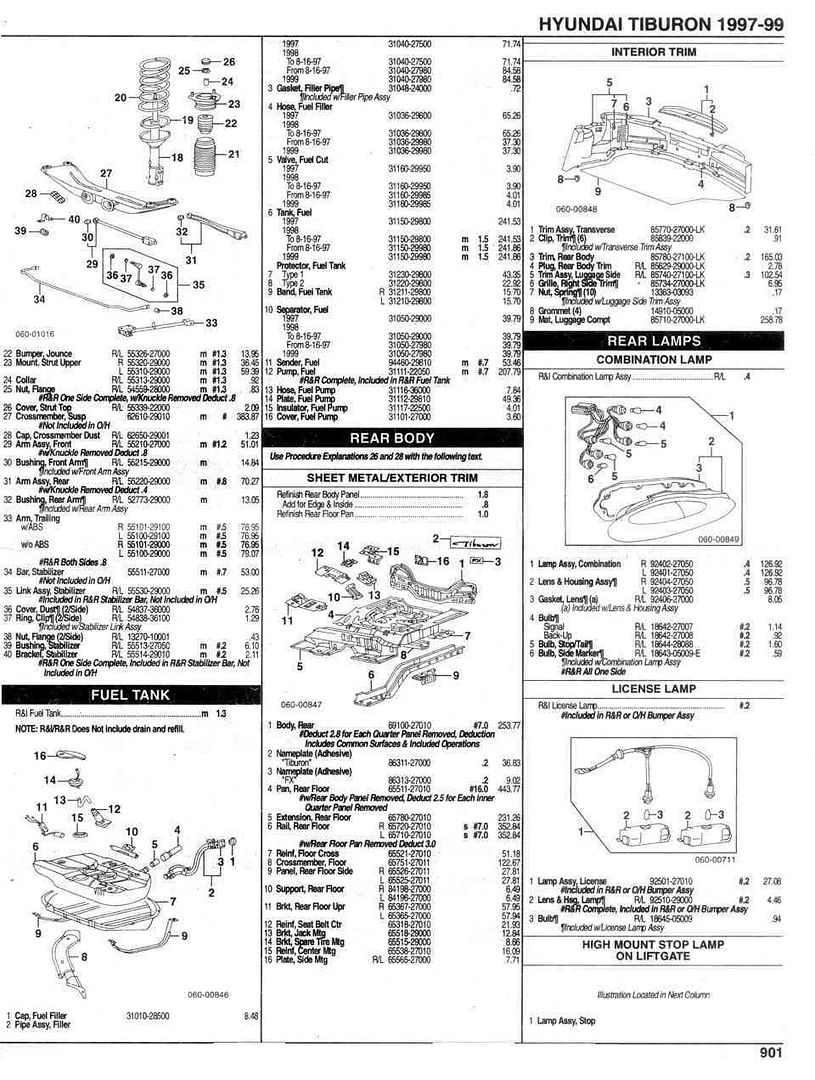

14.
fuel tank
rear body
rear lamps

15.
rear bumper



on listing page 13, in the top left... does anyone have a right side grill or is it only left side? I've never seen a right side.



can a mod change the title to quick REFERENCE? i did a search beacause i couldnt find this and it didnt come up



Sorry, my fault, fixed.
